getting SURF points of any image

this post uses OPENCV 2.2 and a simple change of the extract feature will allow use on version 2.3

class atsSURF
{
public:
    cv::Mat extractPoints(cv::Mat img)
    {
        int minHessian = 500;
        cv::SurfFeatureDetector detector(minHessian);
        std::vector<cv::KeyPoint> keypoints;
        detector.detect(img,keypoints,img); //opencv 2.2
        //detector.detect(img,keypoints); //opencv 2.3

        cv::SurfDescriptorExtractor extractor;
        cv::Mat descriptor;
        extractor.compute(img,keypoints,descriptor);
        thisDescriptor = descriptor;
        thisKeypoints = keypoints;

        cv::Mat outim = img;
        cv::drawKeypoints(img,keypoints,outim,Scalar::all(-1),
                               cv::DrawMatchesFlags::DEFAULT);
        return outim;
    }
private:
    cv::Mat thisDescriptor;
    std::vector<cv::KeyPoint> thisKeypoints;
};

to run from the main function

int main(int argc, char* argv[])
{
char code = (char)-1;
atsImages im("C:/Users/Aresh/Documents/Visual Studio 2010/Projects/opencvTest/Debug/test_connectedComponent_sameColor_sameShape.jpg");
Mat img = im.read("gray");

atsSURF mypoints;


//cv::Mat ima_gray; //in case in RGB
//cv::cvtColor(img,ima_gray,CV_BGR2GRAY); //convert to gray scale
//cv::Mat outim = mypoints.extractPoints(ima_gray);

cv::Mat outim = mypoints.extractPoints(img);
cv::imshow("SURF points", outim);
code = (char)waitKey();
 return 0;
}

and thats all. dont forget the SURF descriptor only accepts GRAY level images. if you feed it a colored image, it will give you the following error:

Unhandled exception at xxxxxx in opencv.exe: Microsoft C++ exception:
cv::Exception at memory location xxxxxxx

Sunday, January 1, 2012

Entropy and Gini index experiments

Conclusion:
1. Entropy and Gini index are unique when color and shape are different
2. Entropy and Gini Index are unique (Small Difference) Color remains the same but different shape
3. Entropy and Gini Index are unique (smaller difference) Color and shape are the same Area and size

Shape and Color are the same, however entropy is unique, Gini Index is even more unique


Saturday, December 31, 2011

Blob Detection, Connected Component (Pure Opencv)



Connected-component labeling (alternatively connected-component analysis, blob extraction, region labeling, blob discovery, or region extraction) is an algorithmic application of graph theory, where subsets of connected components are uniquely labeled based on a given heuristic. Connected-component labeling is not to be confused with segmentation.


i got the initial code from this URL: http://nghiaho.com/?p=1102
However the code did not compile with my setup of OpenCV 2.2, im guessing it was an older version. so a refactored and corrected the errors to come up with this Class



class atsBlobFinder
    {
    public:
        atsBlobFinder()
        {
        }
        ///Original Code by http://nghiaho.com/?p=1102
        ///Changed and added commments. Removed Errors
        ///works with VS2010 and OpenCV 2.2+
        void FindBlobs(const cv::Mat &binary, vector < vector<cv::Point>  > &blobs)
        {
            blobs.clear();

            // Fill the label_image with the blobs
            // 0  - background
            // 1  - unlabelled foreground
            // 2+ - labelled foreground

            ///input is a binary image therefore values are either 0 or 1
            ///out objective is to find a set of 1's that are together and assign 2 to it
            ///then look for other 1's, and assign 3 to it....so on a soforth

            cv::Mat label_image;
            binary.convertTo(label_image, CV_32FC1); // weird it doesn't support CV_32S! Because the CV::SCALAR is a double value in the function floodfill

            int label_count = 2; // starts at 2 because 0,1 are used already

            //erode to remove noise-------------------------------
            Mat element = getStructuringElement( MORPH_RECT,
            Size( 2*3 + 1, 2*3+1 ),
            Point( 0, 0 ) );
            /// Apply the erosion operation
            erode( label_image, label_image, element );
            //---------------------------------------------------

            //just check the Matrix of label_image to make sure we have 0 and 1 only
            //cout << label_image << endl;

            for(int y=0; y < binary.rows; y++) {
                for(int x=0; x < binary.cols; x++) {
                    float checker = label_image.at<float>(y,x); //need to look for float and not int as the scalar value is of type double
                    cv::Rect rect;
                    //cout << "check:" << checker << endl;
                    if(checker == 1) {
                        //fill region from a point
                        cv::floodFill(label_image, cv::Point(x,y), cv::Scalar(label_count), &rect, cv::Scalar(0), cv::Scalar(0), 4);
                        label_count++;
                        //cout << label_image << endl <<"by checking: " << label_image.at<float>(y,x) <<endl;
                        //cout << label_image;

                        //a vector of all points in a blob
                        std::vector<cv::Point> blob;

                        for(int i=rect.y; i < (rect.y+rect.height); i++) {
                            for(int j=rect.x; j < (rect.x+rect.width); j++) {
                                float chk = label_image.at<float>(i,j);
                                //cout << chk << endl;
                                if(chk == label_count-1) {
                                    blob.push_back(cv::Point(j,i));
                                }
                            }
                        }
                        //place the points of a single blob in a grouping
                        //a vector of vector points
                        blobs.push_back(blob);
                    }
                }
            }
            cout << label_count <<endl;
            imshow("label image",label_image);
        }
    private:
    };


From the code comments, ive answered and tested a few parts which the original author did not discuss.

Running on Visual Studio 2010 and OpenCV 2.2 using the 4 connected neighbors and opencv internal function FloodFill.

1. Get the Binary image. the binary image should have values of 0 and 1 only.
2. go through each pixel and find the value 1, floodfill and replace all 1 with a counter ie. number 2
3. every blob found should now be part of floodfill and all neighbors value changed to an ascending number
4. from each blob, get the x and y coordinate of that blob and save it in a vector. giving you a vector<Point>
5. save each of those Vector<Point> into another Vector which represents all the blobs found
6. Output the value



atsBlobFinder blb;
cv::Mat output = cv::Mat::zeros(img.size(), CV_8UC3); //3 Channels

            cv::Mat binary;
            vector <vector<cv::Point>> blobs;

            blb.FindBlobs(binary, blobs);
            for(size_t i=0; i < blobs.size(); i++) {
                unsigned char r = 255 * (rand()/(1.0 + RAND_MAX));
                unsigned char g = 255 * (rand()/(1.0 + RAND_MAX));
                unsigned char b = 255 * (rand()/(1.0 + RAND_MAX));

                for(size_t j=0; j < blobs[i].size(); j++) {
                    int x = blobs[i][j].x;
                    int y = blobs[i][j].y;

                    output.at<Vec3b>(y,x)[0] = ima.at<uchar>(y,x); //channel 1
                    output.at<Vec3b>(y,x)[1] = ima.at<uchar>(y,x); //channel 2
                    output.at<Vec3b>(y,x)[2] = ima.at<uchar>(y,x); //channel 3
                }
            }
            imshow("con comp",output);

the vector<vector<Point>> blobs can create a mask and output the blob in separate images

Wednesday, December 28, 2011

Computing Gini Index of an image (measure of Impurity)

Using my previous posts Class file and this reference:
http://people.revoledu.com/kardi/tutorial/DecisionTree/how-to-measure-impurity.htm

float computeGiniIndex(Mat r, Mat g, Mat b)
    {
        float giniIndex = 0.0;
        float frequency = getFrequencyOfBin(r);
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(r,i));
            giniIndex += Hc*Hc;
        }
        frequency = getFrequencyOfBin(g);
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(g,i));
            giniIndex += Hc*Hc;
        }
        frequency = getFrequencyOfBin(b);
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(b,i));
            giniIndex += Hc*Hc;
        }
        giniIndex = 1 - (giniIndex);
        //cout << giniIndex <<endl;
        return giniIndex;
    }

Friday, December 23, 2011

Computing Entropy of an image (CORRECTED)

entropy is a measure of the uncertainty associated with a random variable.
basically i want to get a single value representing the entropy of an image.

1. Assign 255 bins for the range of values between 0-255
2. separate the image into its 3 channels
3. compute histogram for each channel
4. normalize all 3 channels unifirmely
5. for each channel get the bin value (Hc) and use its absolute value (negative log is infinity)
6. compute Hc*log10(Hc)
7. add to entropy and continue with 5 until a single value converges
5. get the frequency of each channel - add all the values of the bin
6. for each bin get a probability -
if bin 1 = 20
bin 2 = 30
then frequency is 50 and probability is 20/50 and 30/50
then compute using shannon formula

 REFERENCE: http://people.revoledu.com/kardi/tutorial/DecisionTree/how-to-measure-impurity.htm




class atsHistogram
{
public:
    cv::Mat DrawHistogram(Mat src)
    {
        /// Separate the image in 3 places ( R, G and B )
         vector<Mat> rgb_planes;
         split( src, rgb_planes );


         /// Establish the number of bins
         int histSize = 255;


         /// Set the ranges ( for R,G,B) )
         float range[] = { 0, 255 } ;
         const float* histRange = { range };


         bool uniform = true; bool accumulate = false;


         Mat r_hist, g_hist, b_hist;


         /// Compute the histograms:
         calcHist( &rgb_planes[0], 1, 0, Mat(), r_hist, 1, &histSize, &histRange, uniform, accumulate );
         calcHist( &rgb_planes[1], 1, 0, Mat(), g_hist, 1, &histSize, &histRange, uniform, accumulate );
         calcHist( &rgb_planes[2], 1, 0, Mat(), b_hist, 1, &histSize, &histRange, uniform, accumulate );


         // Draw the histograms for R, G and B
         int hist_w = 400; int hist_h = 400;
         int bin_w = cvRound( (double) hist_w/histSize );


         Mat histImage( hist_w, hist_h, CV_8UC3, Scalar( 0,0,0) );


         /// Normalize the result to [ 0, histImage.rows ]
         normalize(r_hist, r_hist, 0, histImage.rows, NORM_MINMAX, -1, Mat() );
         normalize(g_hist, g_hist, 0, histImage.rows, NORM_MINMAX, -1, Mat() );
         normalize(b_hist, b_hist, 0, histImage.rows, NORM_MINMAX, -1, Mat() );


         /// Draw for each channel
         /*for( int i = 1; i < histSize; i++ )
           {
             line( histImage, Point( bin_w*(i-1), hist_h - cvRound(r_hist.at<float>(i-1)) ) ,
                              Point( bin_w*(i), hist_h - cvRound(r_hist.at<float>(i)) ),
                              Scalar( 0, 0, 255), 2, 8, 0  );
             line( histImage, Point( bin_w*(i-1), hist_h - cvRound(g_hist.at<float>(i-1)) ) ,
                              Point( bin_w*(i), hist_h - cvRound(g_hist.at<float>(i)) ),
                              Scalar( 0, 255, 0), 2, 8, 0  );
             line( histImage, Point( bin_w*(i-1), hist_h - cvRound(b_hist.at<float>(i-1)) ) ,
                              Point( bin_w*(i), hist_h - cvRound(b_hist.at<float>(i)) ),
                              Scalar( 255, 0, 0), 2, 8, 0  );
            }*/
double entropy = (double)computeShannon(r_hist,g_hist,b_hist);
         //printf("Entropy: %f" , entropy );
         cout << entropy << endl;
         return histImage;
    }
    float getHistogramBinValue(Mat hist, int binNum)
    {
        //return cvRound(hist.at<float>(binNum));
        return hist.at<float>(binNum);
    }
    float computeShannon(Mat r, Mat g, Mat b)
    {
        int histSize = 255; //number of bins
        float entropy = 0.0;
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(r,i));
            //cout << "Red " << Hc << endl;
            entropy += Hc * log10(Hc);
            //cout << "-" << Hc << " -n- " << entropy << endl;
        }
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(g,i));
            //cout << "Green " << Hc << endl;
            entropy += Hc * log10(Hc);
        }
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(b,i));
            //cout << "Blue " << Hc << endl;
            entropy += Hc * log10(Hc);
        }
        entropy = entropy * -1;
        //cout << entropy <<endl;
        return entropy;
    }
private:
};

     float getHistogramBinValue(Mat hist, int binNum)
    {
        return hist.at<float>(binNum);
    }
    float getFrequencyOfBin(Mat channel)
    {
        float frequency = 0.0;
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(channel,i));
            frequency += Hc;
        }
        return frequency;
    }
    float computeShannonEntropy(Mat r, Mat g, Mat b)
    {
        float entropy = 0.0;
        float frequency = getFrequencyOfBin(r);
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(r,i));
            entropy += -(Hc/frequency) * log10((Hc/frequency));
        }
        frequency = getFrequencyOfBin(g);
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(g,i));
            entropy += -(Hc/frequency) * log10((Hc/frequency));
        }
        frequency = getFrequencyOfBin(b);
        for( int i = 1; i < histSize; i++ )
        {
            float Hc = abs(getHistogramBinValue(b,i));
            entropy += -(Hc/frequency) * log10((Hc/frequency));
        }
        entropy = entropy;
        //cout << entropy <<endl;
        return entropy;
    }

Saturday, October 8, 2011

Opencv 2.3.1 Installation

alright it took me a while before posting this. for OPENCV 2.3.1 and Visual studio 2010 Professional on a windows 7 64 bit environment

Download The "super pack" and unzip to "C:\OPENCV"
it seems you can only get the source of opencv and need to compile it with CMAKE.
very straight forward.
download CMAKE and use the command prompt to enter CMAKE CMAKELIST.txt at the opencv directory

Open  "ALL_BUILD" by double clicking - opens up visual studio
Compile it and wait. (took a minute)
go to properties and select the release version and compile again (took another minute)

your all set with the opencv installation "c:\opencv\build"

create an empty visual studio "win32 console application"

Click on Configuration Properties->VC++ Directories, and edit the Include Directories. Add:

C:\opencv\build\common\tbb30_20110427oss\include (UPDATE)
C:\opencv\build\include

Click on Configuration Properties->VC++ Directories, and edit the Library Directories. Add:
C:\opencv\build\common\tbb30_20110427oss\lib\ia32\vc10 (UPDATE)
C:\opencv\build\x86\vc10\lib

Click on Configuration Properties->Linker->Input, and edit the Additional Dependencies. Add:
opencv_core231d.lib
opencv_imgproc231d.lib
opencv_highgui231d.lib
opencv_ml231d.lib
opencv_video231d.lib
opencv_features2d231d.lib
opencv_calib3d231d.lib
opencv_objdetect231d.lib
opencv_contrib231d.lib
opencv_legacy231d.lib
opencv_flann231d.lib

Click on Configuration Properties->Debugging, and edit the Environment.
 PATH=C:\opencv\build\x86\vc10\bin;C:\opencv\build\common\tbb30_20110427oss\bin\ia32\vc10



Your all set.


(UPDATE)

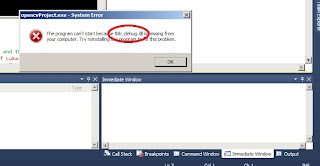

i realized when trying to compile lkdemo.cpp an error:



even though opencv has a tbb folder in the build/common it does not include the complete library so we need to download the whole version from http://threadingbuildingblocks.org/ver.php?fid=171
and unzip it to "c:\opencv\build\common". there is no need to compile it as its already ready for use.

just make the additional changes to the library and include and bin files for this to work.
