SURF keypoints using a camera



#include <stdlib.h>
#include <stdio.h>
#include <math.h>
#include <string.h>
#include <opencv2/objdetect/objdetect.hpp>
#include <opencv2/features2d/features2d.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/calib3d/calib3d.hpp>
#include <opencv2/imgproc/imgproc_c.h>
#include <opencv2/video/tracking.hpp>
#include <iostream>
#include <vector>

using namespace std;
int main(int argc, char** argv)
{
CvMemStorage* storage = cvCreateMemStorage(0);
cvNamedWindow("Object", 1);
int key = 0;
static CvScalar colors[] =
{
{{0,0,255}},
{{0,128,255}},
{{0,255,255}},
{{0,255,0}},
{{255,128,0}},
{{255,255,0}},
{{255,0,0}},
{{255,0,255}},
{{255,255,255}}
};

CvCapture* capture = cvCreateCameraCapture(0);
CvMat* prevgray = 0, *image = 0, *gray =0;
while( key != 'q' )
{
int firstFrame = gray == 0;
IplImage* frame = cvQueryFrame(capture);
if(!frame)
break;
if(!gray)
{
image = cvCreateMat(frame->height, frame->width, CV_8UC1);
}
cvCvtColor(frame, image, CV_BGR2GRAY);
CvSeq *imageKeypoints = 0, *imageDescriptors = 0;
int i;

//Extract SURF points by initializing parameters
CvSURFParams params = cvSURFParams(500, 1);
cvExtractSURF( image, 0, &imageKeypoints, &imageDescriptors, storage, params );
printf("Image Descriptors: %d\n", imageDescriptors->total);

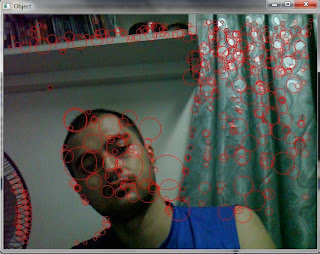

//draw the keypoints on the captured frame
for( i = 0; i < imageKeypoints->total; i++ )
{
CvSURFPoint* r = (CvSURFPoint*)cvGetSeqElem( imageKeypoints, i );
CvPoint center;
int radius;
center.x = cvRound(r->pt.x);
center.y = cvRound(r->pt.y);
radius = cvRound(r->size*1.2/9.*2);
cvCircle( frame, center, radius, colors[0], 1, 8, 0 );
}
cvShowImage( "Object", frame );

cvWaitKey(30);
}
cvDestroyWindow("Object");
return 0;
}
